G.A.L. Gage Company :: Gap-A-Let® Socket Weld Contraction Rings


Get Proper Socket Weld Fit-Up In One-Tenth The Time!

Gap-A-Let® is a split ring that is engineered and designed to give you a pre-measured 1/16" minimum gap for socket welds. Made from a certified stainless steel, Gap-A-Let® resists corrosion from chemicals, radioactive materials, and water.

View Our Product Video

Gap-A-Let®'s spring tension makes it fit tightly into all standard sized fittings from 1" to 4". (Non-standard sizes are available upon request.) Once inserted into the fitting, the Gap-A-Let® ring becomes a permanent part of the joint. It will not rattle or vibrate even under extreme pressure.

Where Is It Used?

Designed for use on any socket weld application, Gap-A-Let® rings are suitable for Power Piping (Nuclear, Conventional), Industrial Hydraulics, Welded Railroad Air Brake Piping, Petrochemical Plants, Fertilizer Plants, Shipbuilding, and the list goes on and on.

What Does It Do For You?

  • Cut fit-up time by up to 90%
  • Save thousands of dollars in cracked weld repairs.

Socket welds that once took 15 minutes or more to fit-up now take just seconds. There is no measuring, scribing, or re-measuring. Just pop the Gap-A-Let® into the fitting and insert pipe into the fitting, Gap-A-Let® socket weld contraction rings automatically set the required 1/16" minimum gap so you're ready to weld.

And because these rings are so easy to use, they eliminate the problems caused by guessing the gap. No longer is there a need to scribe into hard-to-mark metal pipe walls. With Gap-A-Let® rings, quality control inspectors can concentrate on the quality of the weld and not spending valuable time measuring for proper gapping. And since the costly problem of cracked welds due to improper gap is practically eliminated, your pipes can safely transport fluids the first time and every time.

A plus for piping engineers

Gap-A-Let® rings help piping engineers determine end-to-end length of pipe without guessing. Constant, proper gap gives precise length whether in field run or fab shop assembly.

Standard Gap-A-Let® Rings -- 1/4" NPS - 2" NPS:

Each "Standard" Gap-A-Let® Ring is precision MACHINE-manufactured ...

Standard
Ring
FittingRing Free
Outside
Diameter
Ring
Radial
Wall
Ring
Thickness
1/4" NPS
3/8" NPS
1/2" NPS
3/4" NPS
1" NPS
1 1/4" NPS
1 1/2" NPS
2" NPS
.555
.690
.855
1.065
1.330
1.675
1.915
2.406
.600
.730
.880
1.110
1.385
1.780
2.020
2.580
.070
.070
.070
.070
.105
.105
.105
.105
.025
.025
.025
.025
.030
.030
.030
.030

Heavy Duty Gap-A-Let® Rings -- 2 1/2" NPS - 4" NPS:

Each "Heavy Duty" Gap-A-Let® Ring is precision HAND-manufactured ...

Heavy
Duty
Ring
FittingRing Free
Outside
Diameter
Ring
Radial
Wall
Ring
Thickness
2 1/2" NPS
3" NPS
4" NPS
2.905
3.500
4.500
2.910
3.530
4.550
.205
.210
.230
.091
.091
.091

Detailed Specifications Print-Ready PDF

Three easy steps make proper 1/16" minimum gap socket welds in seconds.
Gap-A-Let®1. Fitter compresses Gap-A-Let® ring to fit into pipe fitting.

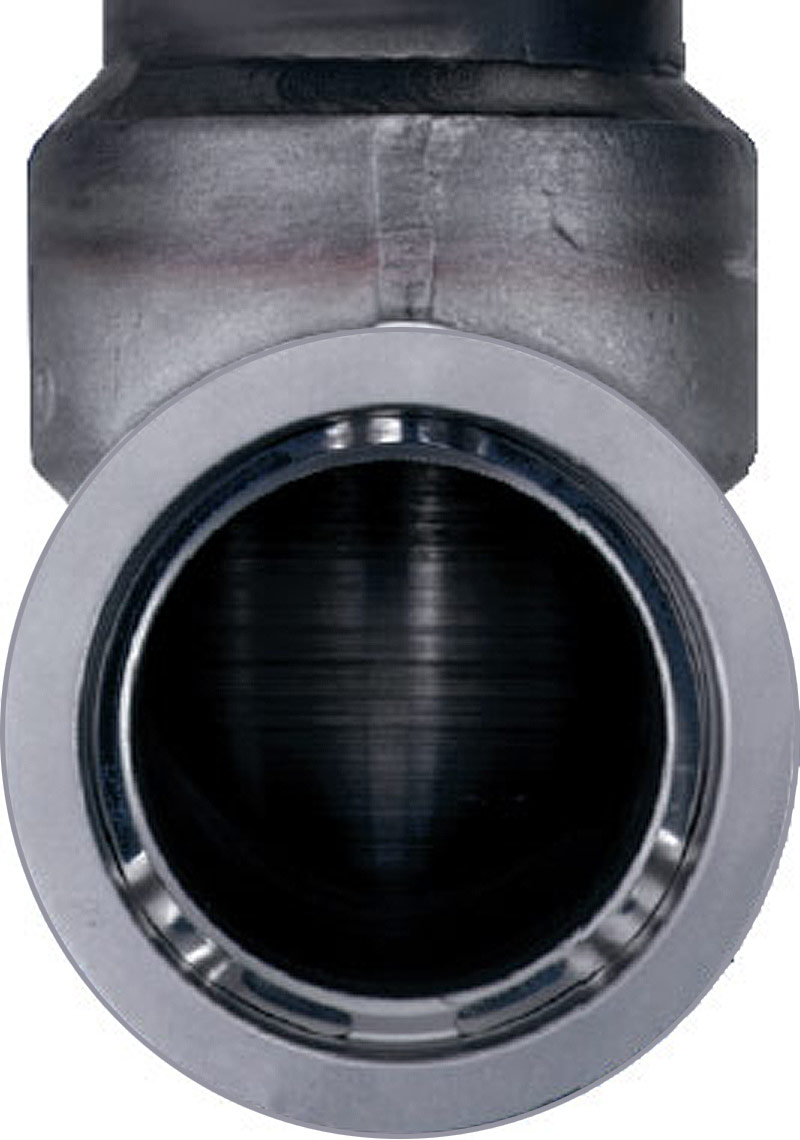

Gap-A-Let®2. Fitter seats ring into fitting. Spring tension holds ring tightly in place, assuring no rattling or vibration even under extreme pressure. Ring becomes a permanent part of the joint.
Gap-A-Let®3. Fitter inserts pipe into fitting. Gap-A-Let® ring automatically assures the minimum gap (1/16") to meet requirements of ANSI 31.1 Section III, ASME & military codes.


Gap-A-Let® Socket Weld Contraction Rings

Gap-A-Let®

View Our Product Video

Proper socket weld fit-up in One-Tenth the time.

Standard Gap-A-Let® Rings:
$30.00
20 pcs/pack

Select Size:




Please allow 4-6 days for delivery.


Heavy Duty Gap-A-Let® Rings:
$68.50
10 pcs/pack

Select Size:




Please allow 4-6 days for delivery.

Detailed Specifications Print-Ready PDF


For Delivery Outside the United States:

Delivery Outside the United StatesIf your order is to be delivered to a location outside the United States, we generally must add 10% to cover the additional Shipping & Handling charges. However, depending upon your items ordered and delivery location, this additional 10% might be too high or too low.

Please contact us with your list of desired items and delivery location so we may quote this adjusted total more accurately:
